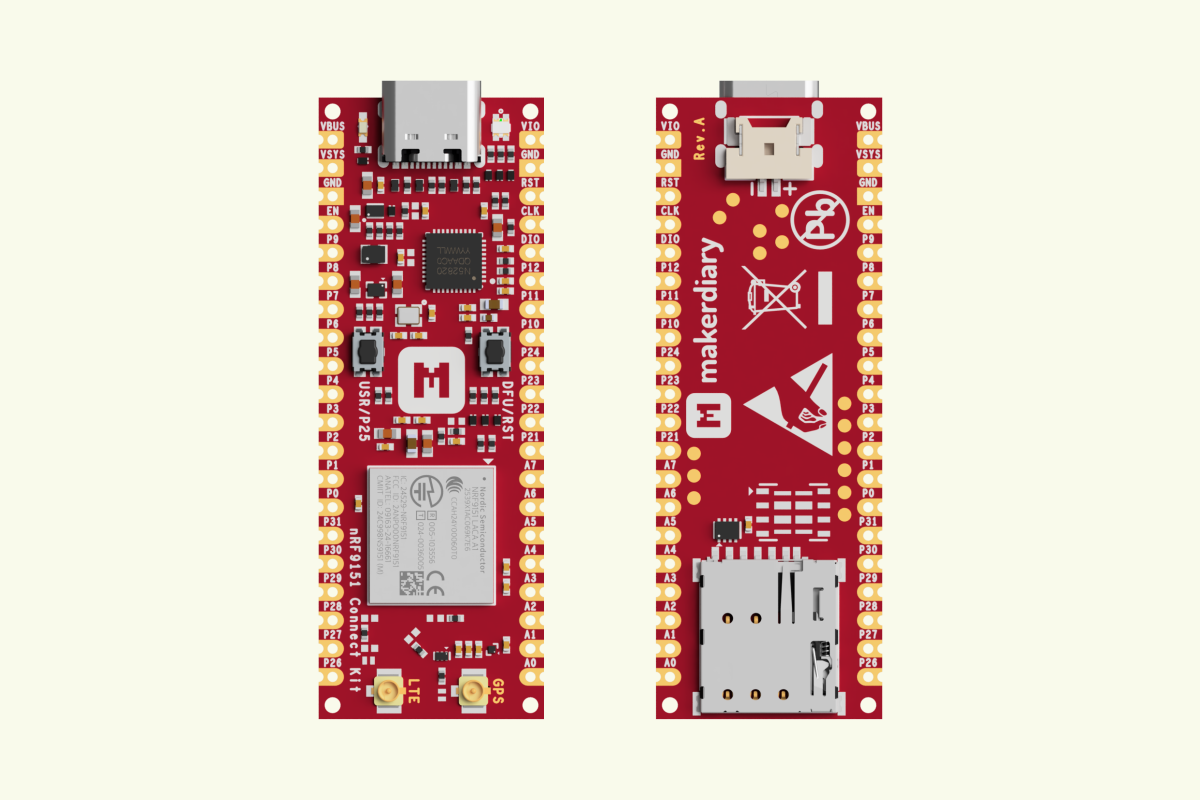

Rapid Prototyping Kit with Cellular IoT Connectivity

Based on the nRF9151 SiP, featuring LTE-M/NB-IoT/NTN, DECT NR+ & GNSS, Interface MCU, Battery Charger, Easy-to-use Form Factor and nRF Connect SDK support.

Quick Start Buy Now

Everything you would expect

  • Built around nRF9151 SiP

    nRF9151 is a low power and highly integrated SiP with 64 MHz Arm Cortex-M33, LTE-M/NB-IoT/NTN and DECT NR+ modem, and GNSS. It has global band support, Arm TrustZone CryptoCell 310, unique modem features for further power saving and ease of use.

  • On-board Interface MCU

    Built-in CMSIS-DAP support for debug, programming as well as modem firmware update, no need for any external tools. Interface MCU also includes a USB-UART bridge for log, trace and terminal emulation, and an Interface Shell to access the board-specific functionality.

  • Easy-to-use Form Factor

    Featuring USB-C, LEDs, Buttons, nano-SIM card slot, Battery connector, U.FL receptacles for U.FL cabled LTE-M/NB-IoT/NR+ and GNSS antennas, Arm Serial Wire Debug (SWD) port and dual-row 40 pins with loose or pre-soldered headers available.

  • Flexible Power Management

    Built using BQ25180 I2C programmable battery charger with power path management and ultra low quiescent current, and TPS63901 buck-boost converter with 75-nA quiescent current and 1.8V/3.3V configurable power supply for I/Os.

  • Built on Open Source

    nRF Connect SDK is supported, including the Zephyr RTOS, various samples, networking protocols, libraries, and hardware drivers, all essential for cellular IoT development. It is open source, and can be leveraged and modified to suit your specific needs.

  • Well Documented

    An extensive set of documentation is available, including getting started and developer guides which can help you save big by reducing development effort. The documentation is hosted as a GitHub repository that allows managing the updates over time.

What's new

  • Migrating from A0 to A1 Revision

    We are pleased to announce that the nRF9151 SiP module on the nRF9151 Connect Kit has been updated from revision A0 to A1, adding support for Non-Terrestrial Networks (NTN).

    Jun 18, 2026 ・ 3 min read

  • Introducing nRF Cloud

    nRF Cloud offers a suite of services optimized for Nordic ultra-low power wireless devices that supports your IoT deployment throughout its entire lifecycle.

    Mar 11, 2025 ・ 4 min read

  • Introducing Interface MCU

    The Interface MCU simplifies debugging and programming of the nRF9151 SiP without external tools and provides access to board-specific features.

    Mar 10, 2025 ・ 3 min read

View all
